LS127C 254nm UVC Ultraviolet Radiation Meter UV Radiometer UVC Intensity Measurement UV Light Meter Radiometer
LS127C Uv Dosimeter Radiometer Uvc Tester 254nm UV Radiation Detection Meter for Germicidal Lamp
Descriptions:
LS127C radiation detection meter is professionally used to measure the intensity of UVC germicidal lamp, adopting integrated design, easy to operate. LS127C radiation detection meter can monitor the intensity of germicidal lamp radiation in real time while keeping users away from UV radiation damage thanks to its Bluetooth function and WeChat mini program connection. Equipped with a 1 meter test hook, the uvc radiometer can be placed on the hook base, the hook hangs directly below the vertical of the lamp for UV radiometer measurement.
Product Feature
1. Professionally used for 254nm germicidal lamp ultraviolet radiation intensity detection.
2. Cell phone APP real-time monitoring, away from UV radiation damage.
3. Auto shutdown can be set within 1-255 minutes, test data will be saved automatically when shutdown.

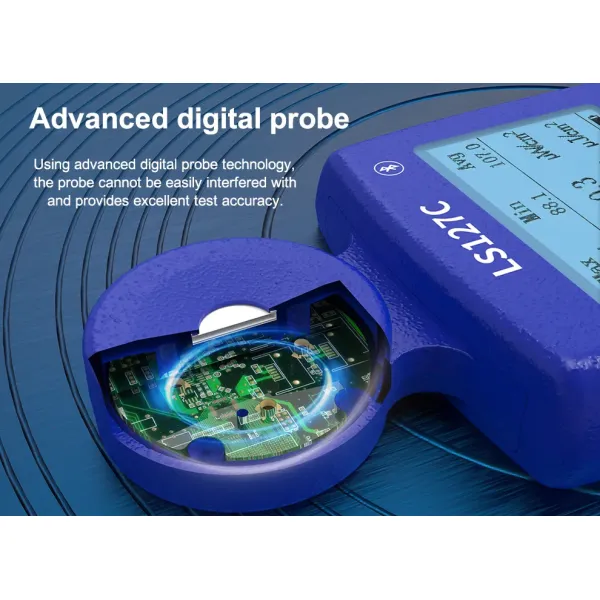

4. The uvc tester adopts high-precision UVC filters and professional UV sensors to eliminate the influence of UVA and UVB.

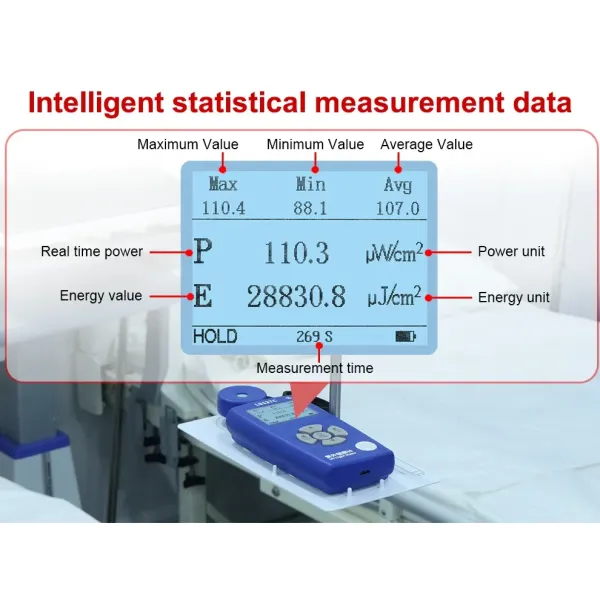

5. The uvc tester counts real-time power, maximum, minimum, average, energy values and measurement times.

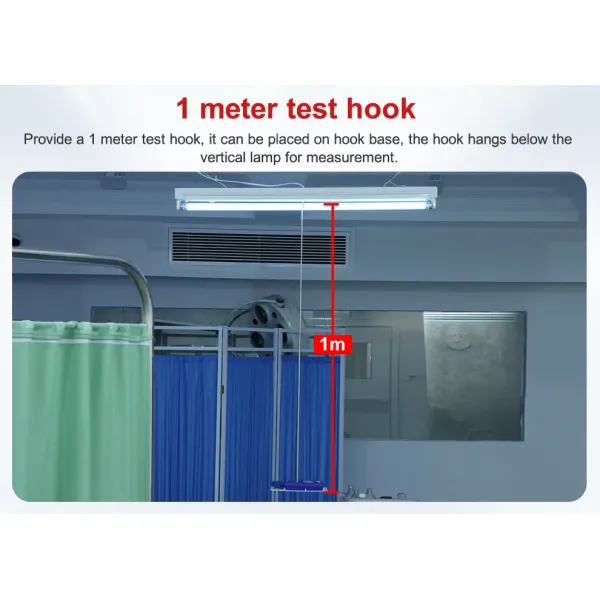

6. Provide a 1 meter test hook, it can be placed on hook base, the hook hangs below the vertical lamp for measurement.

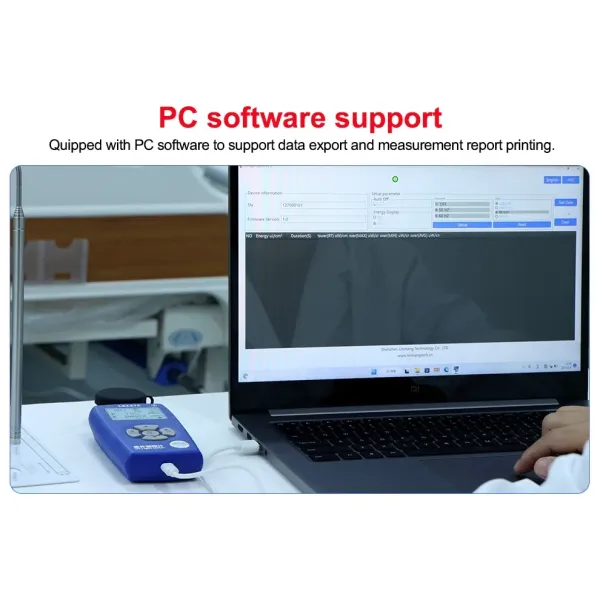

7. Equipped with PC software to support data export and measurement report printing.
Product Parameters
|
Parameter
|
Value
|
|
Spectral response
|
230nm-280nm,λp = 254nm
|
|
Power measuring range
|
0 - 20000μW/cm2
|
|
Power resolution
|
0.1μW/cm2
|
|
Energy measuring range
|
0 - 9999999 μJ/cm2
|
|
Relative indication error
|
±8%(relative to NIM standard)
|
|
Long wave response error
|
60%
|
|
Cosine characteristics (directional response) error
|
10%
|
|
Linearity error
|
±1%
|
|
Short-term instability
|
±1%( 30min after startup)
|
|
Fatigue characteristics
|
Attenuation 2%
|
|
Error of zero
|
±0.1% of full scale
|
|
Response time
|
0.5 seconds
|
|
Recording time
|
0 - 99999S
|
|
Unit
|
μW/cm2 (default),mW/cm2,W/m2
|
|
Bluetooth transmission distance
|
50 meters (open area)
|
|
Instrument size
|
188.5mm*75.2mm*30.3mm
|
|
Instrument weight
|
About 232 grams (including batteries)
|
|
Display
|
240*160 dot matrix LCD
|
|
Battery
|
2 AA alkaline dry batteries
|
Detailed Photos
