VM-213 Mini Vibration Analysis Meter Pen Type RS-232 with Piezoelectric Sensor

MOQ : 2

Price : US$235

Brand Name : Bestone

Model Number : VM-213

Certification : CE,ROHS

Place of Origin : China

Payment Terms : T/T,Western Union

Supply Ability : more than 500pcs per month

Delivery Time : 5-8 working days

Packaging Details : portable bag

Model NO. : VM-213

Frequency Range : Acceleration: 10 Hz ~ 10k Hz

Accuracy : 5 % of Reading + 2 Digits

Data Output : RS-232

Transport Package : Gift Box and Carrying Case

HS Code : 9031809090

Contact Now

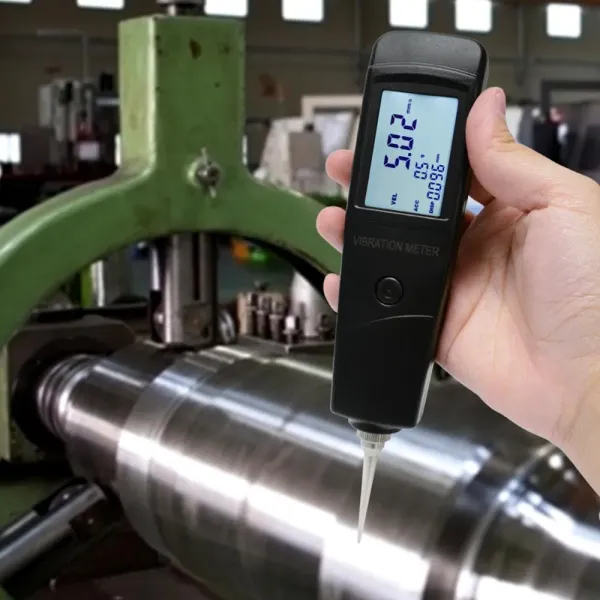

VM-213 Pen Type Mini Vibration Meter
Digital vibration tester with piezoelectric sensor for measuring acceleration, velocity, and displacement in machinery applications and quality control.
Applications
Designed for measuring periodic motion to detect imbalance and deflection in moving machinery. Provides essential data for quality control, runtime monitoring, and equipment maintenance programs.
Key Features
  • Simultaneous display of displacement, velocity, and acceleration parameters
  • Compliant with ISO 2954 for periodic measurements and mechanical fault detection
  • Ideal for on-site vibration measurement of rotating machinery
  • High-quality accelerometer ensures accurate and repeatable measurements
  • Frequency range up to 10Hz~10kHz in acceleration mode
  • RS-232 data output for PC connectivity
  • Optional Bluetooth data output available
Vibration Standards (ISO/IS2373 Motor Quality)
Quality Rank Rev (rpm) H: 80-132mm H: 132-225mm H: 225-400mm
Normal 600-3600 1.8 2.8 4.5
Good (R) 600-1800 0.71 1.12 1.8
Good (R) 1800-3600 1.12 1.8 2.8
Excellent (S) 600-1800 0.45 0.71 1.12
Excellent (S) 1800-3600 0.71 1.12 1.8
Maximum vibration velocity RMS (mm/s)
Technical Specifications
Sensor Piezoelectric Transducer
Measuring Range - Acceleration 0.1~300m/s² (Equivalent Peak 985ft/s²)
Measuring Range - Velocity 0.01~300mm/s True RMS (0.000~13.0inch/s)
Measuring Range - Displacement 0.001~3.000 mm (0.04~120.0 mil Equivalent Peak-peak)
Frequency Range - Acceleration 10Hz~10kHz
Frequency Range - Velocity 10Hz~1kHz
Frequency Range - Displacement 10Hz~1kHz
Accuracy 10% of Reading + 2 digits
Metric/Imperial Conversion yes
Max Value Hold yes
Power Off Manual Power Off or Auto Power Off
Data Output USB, RS-232
Operating Conditions Temp: 0~50ºC, Humidity: <90%RH
Power Supply Lithium Battery
Dimensions 202x43x23 mm (8.0x1.7x0.9 inch)
Weight 130g (Including Batteries)
Standard Accessories
Main Unit, Carrying Case, Manual Book
Optional Accessories
RS-232 Data Cable with Software, Bluetooth Data Adapter with Software
Product Gallery
VM-213 Mini Vibration Analysis Meter Pen Type RS-232 with Piezoelectric Sensor VM-213 Mini Vibration Analysis Meter Pen Type RS-232 with Piezoelectric Sensor VM-213 Mini Vibration Analysis Meter Pen Type RS-232 with Piezoelectric Sensor
