HT-6510T Series Textile Hardness Tester with Convertible Probe, Average Calculate, and Peak Value Deposit Functions

Name: HT6510T Series Textile Hardness Tester with Convertible Probe Average Calculate and Peak Value Deposit Functions
Brand: Bestone
Price: 1 USD

China HT-6510T Series Textile Hardness Tester with Convertible Probe, Average Calculate, and Peak Value Deposit Functions wholesale

MOQ : 2

Price : negotiable

Brand Name : Bestone

Model Number : HT-6510T-2.5/HT-6510T-5/HT-6510T-10

Certification : CE

Place of Origin : CHINA

Payment Terms : T/T,Western Union

Supply Ability : more than 100pcs per month

Delivery Time : 5-8 working days

Packaging Details : plastic carrying case and white paper box

Measuring Range : H

Application : Measure The Winding Density (Hardness) of Textile

Warranty : 1 Year

Support Language : English

Customized : Customized

Parameters : Tested Result/Mean Value/Max.Value

Indenter : Ball 2.5mmΦ,5mmΦ,10mmΦ,

Display Range : 0-100h (Hardness Graduation Marks)

Resolution : 0.1h

Accuracy : ≤±1h

Pressing Depth : 10mm

Testing Range : 10-90h (Hardness Graduation Marks)

Depth of Indentation : 0-2.5mm

Test Pressure : Approx. 12.5n

Measuring Spring Force : 0.55-8.065n

Scale Diameter : 51mm

Transport Package : Carrying Case

Specification : 25cmx7cmx5cm, 0.2kgs, plastic

Contact Now

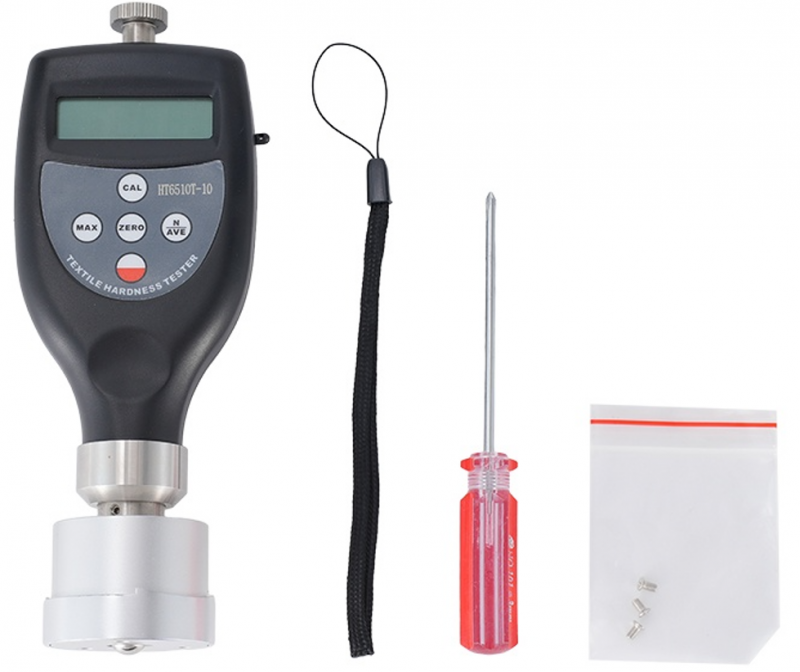

HT-6510T Series Textile Bobbins Beams Spools Cones Dye Packages Hardness Tester

Applications

Measures the winding density (hardness) of textile bobbins, beams, spools, cones, dye packages, and similar textile components.

Key Features

Convertible probe system - curved end for bobbins ≤400mm diameter, flat end for bobbins >400mm diameter
Average calculation function for consistent measurements
Peak value deposit function
Under-voltage alarm for battery monitoring
Optional USB data output for PC connectivity
Optional Bluetooth data output available

Measurement Principle

The textile hardness measurement is based on measuring the resistance force of ball penetration into the spool under a known spring load. This principle aligns with the Shore A hardness testing methodology.

Technical Specifications

Parameter	HT-6510T-2.5	HT-6510T-5	HT-6510T-10
Indenter	Ball 2.5mmΦ	Ball 5mmΦ	Ball 10mmΦ
Application Area	Closely wound bobbins of synthetic, finished fibers and filaments	Loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads	Very loosely wound bobbins of thick yarns, such as carpet yarns
Display Range	0-100H (hardness graduation marks)
Testing Range	10-90H (hardness graduation marks)
Resolution	0.1H
Accuracy	≤±1H
Depth of Indentation*	0-2.5mm	0-2.5mm	0-2.5mm
Test Pressure**	Approx. 12.5N	Approx. 12.5N	Approx. 12.5N
Measuring Spring Force*	0.55-8.065N	0.55-8.065N	0.55-8.065N
Scale Diameter	51mm
Working Face Radius	55mm (when using curved end of probe)
Working Face Flat	45mmΦ (when using flat end of probe)
Operating Conditions	Temperature: 0-40°C, Humidity: <80%RH
Power Supply	2x1.5V AAA(UM-4) Battery
Dimensions	177x65x45mm
Weight	Approx. 285g (excluding batteries)

* Depth of indentation and measuring spring force specifications apply to all models

** Test pressure specifications apply to all models

Standard Accessories

Main Unit, Carrying Case, Operation Manual

Optional Accessories

USB Data Cable with Software, Bluetooth Data Adapter with Software
